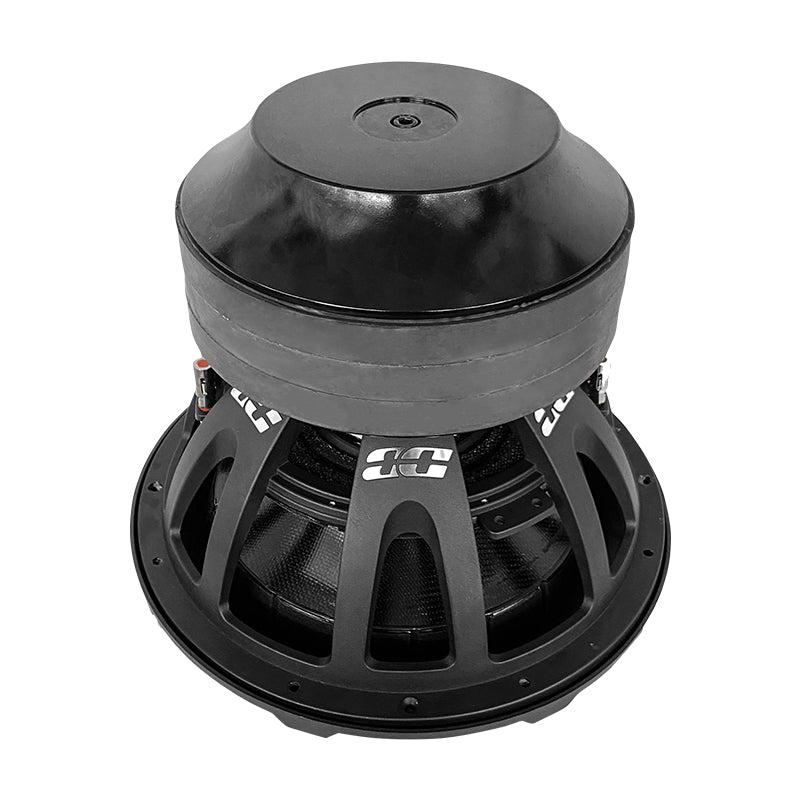

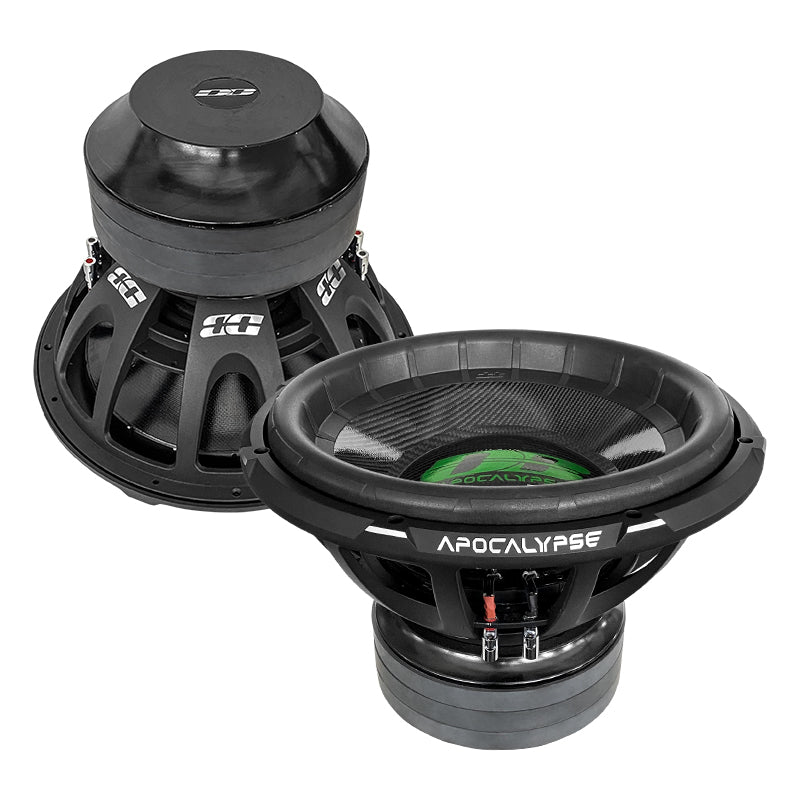

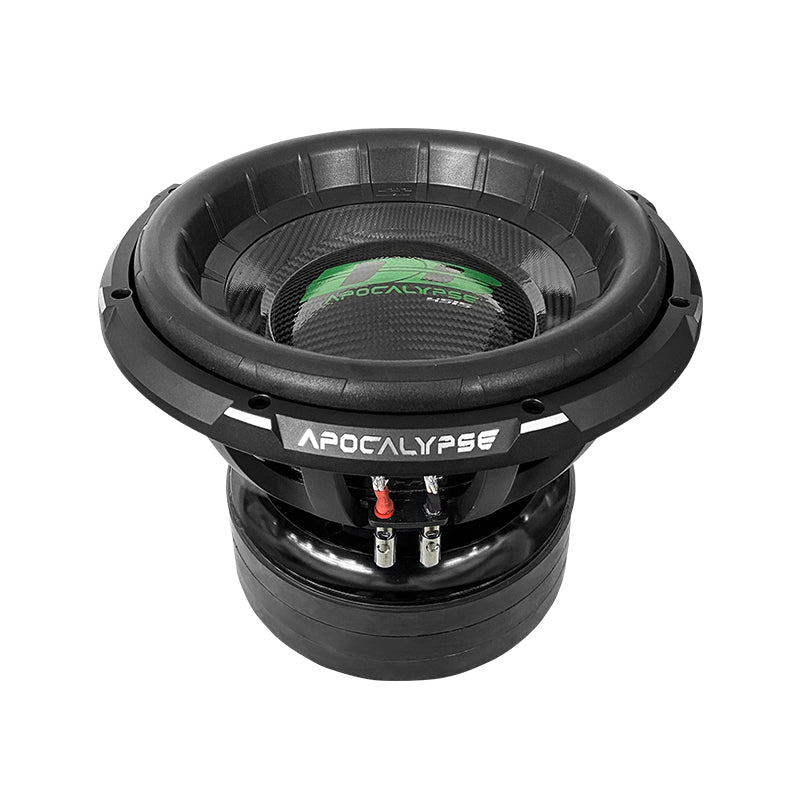

Deaf Bonce Apocalypse DB-4515R D1
Modifications:
Ω 1+1 Ohm Ω 2+2 Ohm
Ω 1+1 Ohm Ω 2+2 Ohm
Series: Apocalypse
| Model | DB-4515R D1 / DB-4515R D2 |
| Type | Subwoofer |
| Size | 15 inch |
| Voice coil size | 4.50 inch |
| Cone | Carbon |
| Magnet | Ferrite |
| Voice coil wire | None |
| Surround | Foam |
| RMS Power | 4500 W |
| MAX Power | 9000 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 87.70 / 87.80 dB |
| Fs | 32.00 / 32.40 Hz |
| Qts | 0.35 / 0.36 |
| BL | 26.20 / 27.90 |
| Vas | 67.00 / 68.40 L |
| Xmeh | 45.00 45.00 / 45.00 mm |
| Xmax | 22.50 / 22.50 mm |
| Mounting depth | inch (303.5 mm) |
| Cut-out dimension | inch (355.0 mm) |
| Gross weight | lb (59.80 kg) |
