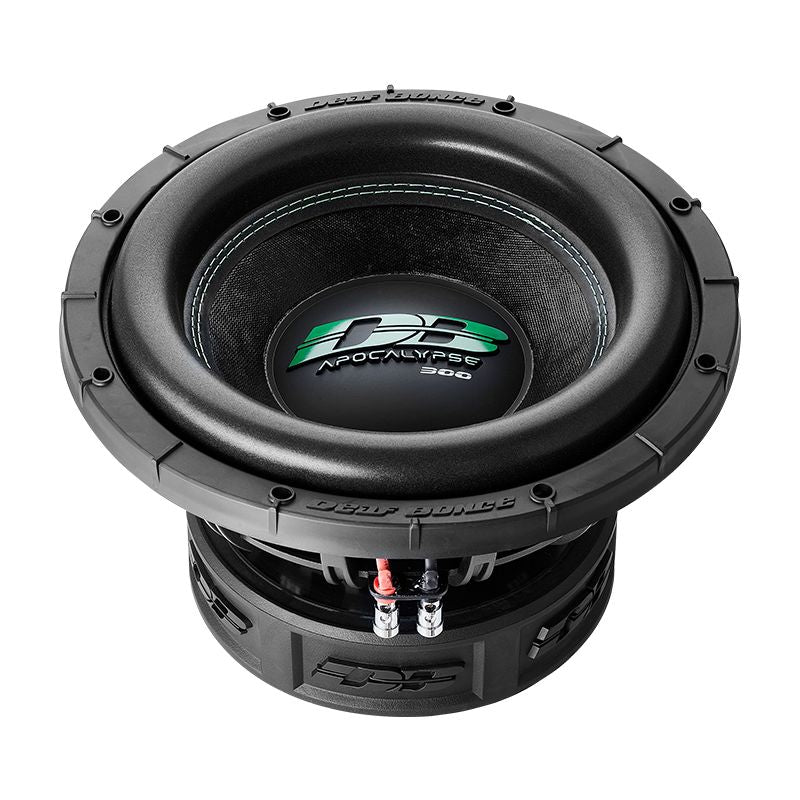

Apocalypse DB-SA302 D2 Subwoofer
| Model | DB-SA302D2 / DB-SA302D1 |
| Type | Subwoofer |
| Size | 12 in |
| Subwoofer Type | Passive |
| Voice Coil Size | 3.00 in |
| Diffuser Material | Pressed paper |
| Magnet | Ferrite |
| Winding | Copper-plated aluminum |
| Suspension material | Foam |
| RMS Power | 2000 W |
| MAX Power | 4000 W |
| Cart | Aluminum |
| Impedance | 2+2 / 1+1 ohms |
| SPL | 86.70 / 86.30 dB |
| Fs | 35.67 / 35.16 Hz |
| Qts | 0.34 / 0.30 |
| BL | 20.84 / 20.04 |
| Vas | 24.00 / 21.00 l |
| Xmax | 18.00 / 18.00 mm |
| Installation depth | 179.5 mm |
| Mounting hole | 279.3 mm |
| Package Weight | 16.400 kg |
Apocalypse DB-SA302 is an extremely powerful sports subwoofer. In October 2020, the owners of subwoofers of this model set a record for sound pressure in several formats at once. With the potential and endurance of the DB-SA302, you can build an extremely loud system and compete for prizes in caraudio competitions.
Advantages of the model:
-
Japanese voice coil. The DB-SA302 outperformed other subwoofers in terms of endurance thanks to bold technological solutions. We were the first in Russia to switch to a Japanese voice coil, and now the models of the Apocalypse line cope with the prohibitive 300°C. Unleash the full power of these subs and be sure that they will withstand even the most serious and long tests.
-
Developed cooling system. All DB-SA subwoofers have a unique basket design and efficient ventilation. This helps the subs not to overheat over a long distance and cope with high loads.
-
Improved centering washer. Thanks to the rigid high-quality washers, the moving system maintains a linear stroke.
The latest technological solutions, high-quality build quality and incredible endurance make the Apocalypse DB-SA302 subwoofer the best in its price segment.
To achieve the highest performance, you can use subs in pairs. The total effective area of the cones will increase, and you will get the most power from the subwoofer link.
How to Choose Resistance

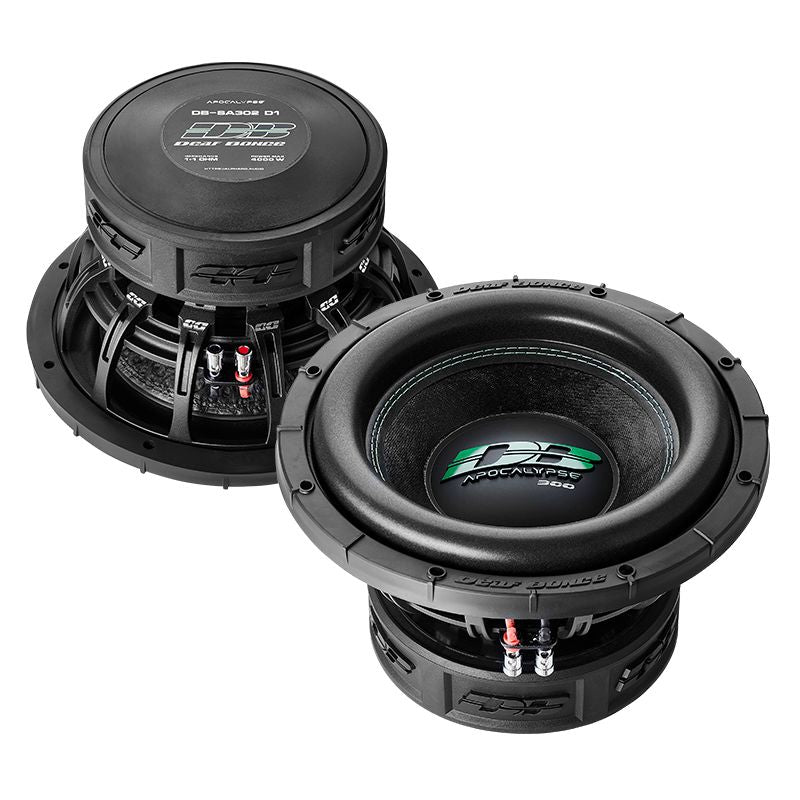

The model is available in two versions:
-

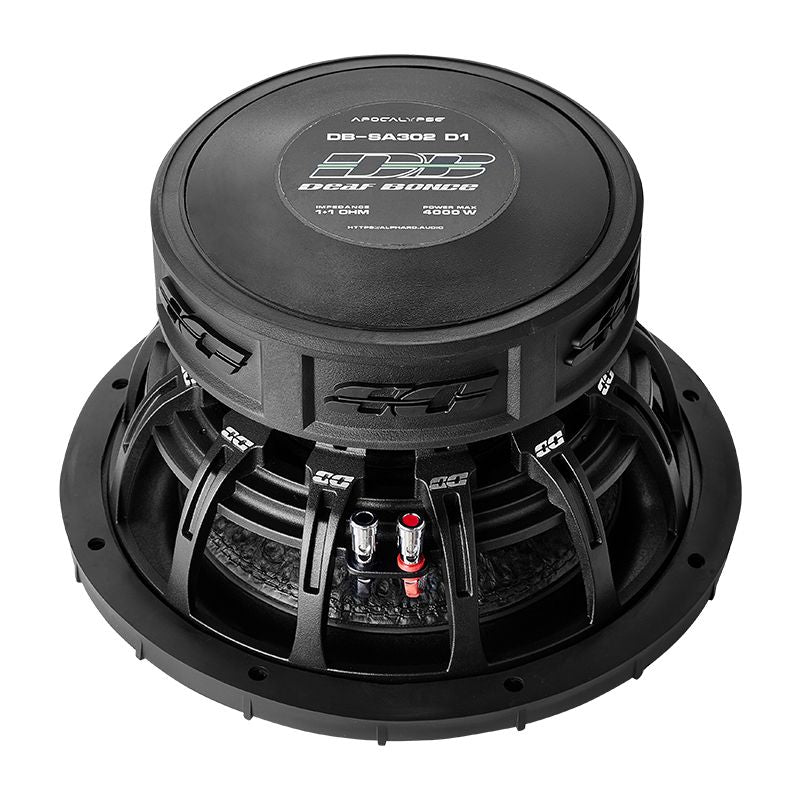

The first option, the Apocalypse DB-SA302 D1, is suitable for dual subwoofers. You'll be able to connect them in 1 ohm for maximum power.
-
Apocalypse DB-SA302 D2 is a version for a single sub. To reduce the resistance to 1 ohm, you need to connect the coils in parallel.
The amplifier must support operation with the appropriate resistance. The best option is the ultra-compact Apocalypse all-in-one PCs with high efficiency, which work stably in 1 ohm.
